RADIUS RODS:

SWAGED ALUMINUM

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.

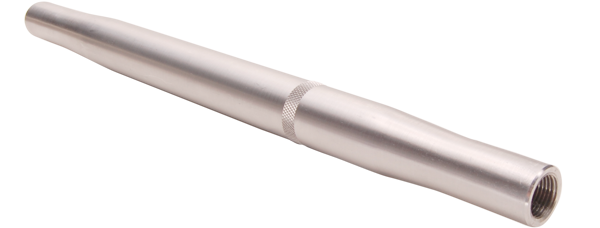

radius rods swaged aluminum



MATERIALS FEATURES
6061-T6 LEFT HAND THREAD
  INDICATED WITH
  KNURLED RING


CAUTIONS

  1. Do not install any component listed here, on this site or in our catalog before you READ, UNDERSTAND AND ACCEPT THE WARNINGS.

SWAGED ALUMINUM

RES
PART
NO.		TUBING
O.D.

WALL
THICKNESS

THREAD
SIZE		LENGTH
6815-XX 1/2 .083 5/16 4-30
6826-XX 3/4 .120 3/8 4-50
6836-XX 7/8 .156 3/8 4-50
6837-XX 7/8 .156 7/16 4-50
6838-XX 7/8 .156 1/2 4-50
6848-XX 1 .120 1/2 4-60
68410-XX 1 .120 5/8 4-60
68510-XX 1 1/8 .156 5/8 4-60
68610-XX 1 1/4 .120 5/8 5-60
68612-XX 1 1/4 .120 3/4 5-60

SWAGED STEEL

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.
swaged steel radius rods



MATERIALS FEATURES
DOM TUBING LEFT HAND THREAD
 ASTM A-513 INDICATED WITH
TYPE 5   STEEL KNURLED RING
   ZINC & YELLOW CHROMATE

SWAGED STAINLESS STEEL *minimum order required, call for minimum.

MATERIALS FEATURES
304 STAINLESS STEEL LEFT HAND THREAD
  INDICATED WITH
  KNURLED RING

SWAGED STEEL

RES
PART
NO.		TUBING
O.D.

WALL
THICKNESS

THREAD
SIZE		LENGTH
34-XX 3/4 .083 1/2 4-30
78-XX 7/8 .083 5/8 4-30
10-XX 1 .095 3/4 5-40

SWAGED STAINLESS STEEL

RES
PART
NO.		TUBING
O.D.

WALL
THICKNESS

THREAD
SIZE		LENGTH
SS 34-XX 3/4 .083 1/2 6-30
SS 78-XX 7/8 .083 5/8 6-30
SS 10-XX 1 .095 3/4 7-40

NON-SWAGED ALUMINUM (ROUND or HEX)

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.




MATERIALS FEATURES
6061-T6 LEFT HAND THREAD
 .156 WALL THICKNESS INDICATED WITH
 Aluminum MILLED FLAT OR NOTCH


NON-SWAGED ALUMINUM

RES
PART
NO.		TUBING
O.D.

THREAD
SIZE

LENGTH
19-XX 7/8 5/8 4-40
20-XX 1 3/4 4-40
