PMX, PFX: PRECISION - CHROMOLY STEEL

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.

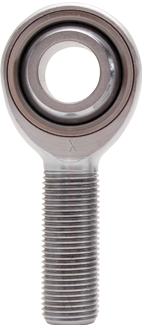

PMX Rod End
PMX
BALL RACE BODY
52100 BEARING STEEL STAINLESS 4130 STEEL
PRECISION GROUND STEEL HEAT TREATED
HEAT TREATED   CHROME PLATED
HARD CHROME PLATED

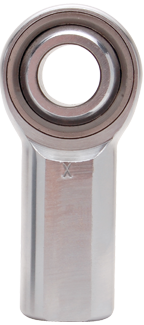

PFX

CAUTIONS

  1. Lubrication Required: To insure proper function, the rod ends listed below must be lubricated. To insure complete lubrication, before installation, rotate ball bore 90 to installed position, fill housing with high-quality grease. Restore ball bore to installed position, wipe off excess grease and install.
  2. Lubricants may attract dirt and other abrasive contamination. Rod ends must be removed, thoroughly cleaned, inspected, and re-greased whenever contamination of any kind is present.
  3. Do not install any component listed here, on this site or in our catalog before you READ, UNDERSTAND AND ACCEPT THE WARNINGS.
  4. DO NOT OPERATE VEHICLE WITH WORN OR CONTAMINATED ROD ENDS.

NOTES

  1. FOR LEFT HAND THREADS ADD "L" TO PREFIX. EXAMPLE: PMXL4
  2. FOR STUDS ADD "Y" TO SUFFIX. EXAMPLE: PMX6Y
  3. FOR TEFLON LINER ADD "T" TO SUFFIX. EXAMPLE: PMX12T

PMX PFX ROD ENDS

RES PART NO.BORE X THD. SIZE REF.B DIA. +.0015 -.0005D DIA. +.010 -.010W WIDTH + .000 - .005T WIDTH + .005 - .005BALL DIA.
REF.		AM LGTH. -.015 +.015Af LGTH. -.015 +.015N THD. UNF. 3A-2BCM LGTH. +.062 -.031CF LGTH. +0.62 -.031E DIA. -.010 +.010F  FLAT +.010 -.010a MIS. ANG. REF.ULT. STATIC RADIAL LOAD(LBS.)APPROX. WEIGHT
(LBS.)
PMX 3 3/16x10-32 .1900 .625 .312 .250 .437 1.250 - 10-32 .750 - - - 13 2,851 .03
PFX 3 3/16x10-32 .1900 .625 .312 .250 .437 - 1.062 10-32 - .562 .406 .312 13 3,733 .04
PMX 4 1/4x1/4-28 .2500 .750 .375 .281 .500 1.562 - 1/4-28 1.000 - - - 16 5,260 .04
PFX 4 1/4x1/4-28 .2500 .750 .375 .281 .500 - 1.312 1/4-28 - .750 .469 .375 16 6,190 .06
PMX 5 5/16x5/16-24 .3125 .875 .437 .344 .625 1.875 - 5/16-24 1.250 - - - 14 7,639 .07
PFX 5 5/16X5/16-24 .3125 .875 .437 .344 .625 - 1.375 5/16-24 - .750 .500 .437 14 7,639 .09
PMX 6 3/8X3/8-24 .3750 1.000 .500 .344 .719 1.938 - 3/8-24 1.375 - - - 12 9,544 .11
PFX 6 3/8X3/8-24 .3750 1.000 .500 .406 .719 - 1.625 3/8-24 - .937 .687 .562 12 9,544 .15
PMX 7 7/16X7/16-20 .4375 1.125 .562 .406 .812 2.125 - 7/16-20 1.500 - - - 14 10,285 .16
PFX 7 7/16X7/16-20 .4375 1.125 .562 .437 .812 - 1.812 7/16-20 - 1.062 .750 .625 14 10,285 .20
PMX 8 1/2X1/2-20 .5000 1.312 .625 .437 .937 2.438 - 1/2-20 1.625 - - - 12 16,238 .24
PFX 8 1/2X1/2-20 .5000 1.312 .625 .500 .937 - 2.125 1/2-20 - 1.187 .875 .750 12 16,238 .33
PMX 10 5/8X5/8-18 .6250 1.500 .750 .500 1.125 2.625 - 5/8-18 1.750 - - - 16 17,995 .37
PFX 10 5/8X5/8-18 .6250 1.500 .750 .562 1.125 - 2.500 5/8-18 - 1.500 1.000 .875 16 17,995 .48
PMX 12 3/4X3/4-16 .7500 1.750 .875 .562 1.312 2.875 - 3/4-16 2.000 - - - 14 28,081 .60
PFX 12 3/4X3/4-16 .7500 1.750 .875 .687 1.312 - 2.875 3/4-16 - 1.750 1.125 1.000 14 28,081 .72
PMX 14 7/8X7/18-14 .8750 2.000 .875 .687 1.375 3.375 - 7/8-14 2.125 - - - 7 45,051 .92
PFX 14 7/8X7/18-14 .8750 2.000 .875 .765 1.375 - 3.375 7/8-14 - 1.875 1.300 1.125 7 45,051 1.03
PMX 16-1 1X1-14 1.000 2.750 1.375 1.000 1.875 4.125 - 1-14 - - - - 17 76,200 2.13
PFX 16-1 1X1-14 1.000 2.750 1.375 1.000 1.875 - 4.125 1-14 - 2.125 1.625 1.500 17 76,200 2.41

HEAVY DUTY SHANK

RES PART NO.BORE X THD. SIZE REF.B DIA. +.0015 -.0005D DIA. +.010 -.010W WIDTH + .000 - .005T WIDTH + .005 - .005BALL DIA.
REF.		AM LGTH. -.015 +.015Af LGTH. -.015 +.015N THD. UNF. 3A-2BCM LGTH. +.062 -.031CF LGTH. +0.62 -.031E DIA. -.010 +.010F WRENCH FLAT .010a MIS. ANG. REF.ULT. STATIC RADIAL LOAD(LBS.)APPROX. WEIGHT
(LBS.)
PMX 3-4 3/16X1/4-28 .1900 .750 .312 .250 .437 1.562 - 1/4-28 1.000 - - - 10 5,260 .04
PMX 4-5 1/4X5/16-24 .2500 .875 .375 .281 .500 1.875 - 5/16-24 1.250 - - - 13 8,452 .07
PMX 5-6 5/16X3/8-24 .3125 1.000 .437 .344 .625 1.938 - 3/8-24 1.250 - - - 12 12,978 .11
PMX 6-7 3/8X7/16-20 .3750 1.125 .500 .406 .719 2.125 - 7/16-20 1.375 - - - 10 17,508 .16
PMX 7-8 7/16X1/2-20 .4375 1.312 .562 .437 .812 2.438 - 1/2-20 1.500 - - - 12 23,452 .25
PMX 8-10 1/2X5/8-18 .5000 1.500 .625 .500 .937 2.625 - 5/8-18 1.625 - - - 10 31,390 .37
PMX 10-12 5/8X3/4-16 .6250 1.750 .750 .562 1.125 2.785 - 3/4-16 1.750 - - - 13 40,572 .57
PMX 12-14 3/4X7/8-14 .7500 2.000 .875 .687 1.312 3.375 - 7/8-14 1.875 - - - 12 55,692 .92
PMX 16 1X1 1/4-12 1.000 2.750 1.375 1.000 1.875 4.125 - 1 1/4-12 2.125 - - - 17 76,200 2.13
