PM, PF: MILD STEEL

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.

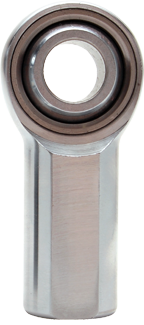

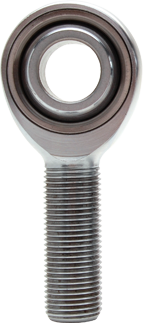

PM rod end PF rod end
PM
BALL RACE BODY
52100 BEARING STEEL STAINLESS LOW CARBON STEEL
PRECISION GROUND STEEL CHROME PLATED
HEAT TREATED
HARD CHROME PLATED
PF

CAUTIONS

  1. Lubrication Required: To insure proper function, the rod ends listed below must be lubricated. To insure complete lubrication, before installation, rotate ball bore 90 to installed position, fill housing with high-quality grease. Restore ball bore to installed position, wipe off excess grease and install.
  2. Lubricants may attract dirt and other abrasive contamination. Rod ends must be removed, thoroughly cleaned, inspected, and re-greased whenever contamination of any kind is present.
  3. Do not install any component listed here, on this site or in our catalog before you READ, UNDERSTAND AND ACCEPT THE WARNINGS.
  4. DO NOT OPERATE VEHICLE WITH WORN OR CONTAMINATED ROD ENDS.

NOTES

  1. FOR LEFT HAND THREADS ADD "L" TO PREFIX. EXAMPLE: PML4
  2. FOR STUDS ADD "Y" TO SUFFIX. EXAMPLE: PM6Y
  3. FOR TEFLON LINER ADD "T" TO SUFFIX. EXAMPLE: PM12T

PM PF ROD ENDS

RES PART NO.BORE X THD. SIZE REF.B DIA. +.0015 -.0005D DIA. +.010 -.010W WIDTH + .000 - .005T WIDTH + .005 - .005BALL DIA.
REF.		AM LGTH. -.015 +.015AF LGTH. -.015 +.015N THD. UNF. 3A-2BCM LGTH. +.062 -.031CF LGTH. +0.62 -.031E DIA. -.010 +.010F  FLAT +.010 -.010a MIS. ANG. REF.ULT. STATIC RADIAL LOAD(LBS.)APPROX. WEIGHT
(LBS.)
PM 3 3/16x10-32 .1900 .625 .312 .250 .437 1.250 - 10-32 .750 - - - 13 1,169 .03
PF 3 3/16x10-32 .1900 .625 .312 .250 .437 - 1.062 10-32 - .562 .406 .312 13 1,531 .04
PM 4 1/4x1/4-28 .2500 .750 .375 .281 .500 1.562 - 1/4-28 1.000 - - - 16 2,158 .04
PF 4 1/4x1/4-28 .2500 .750 .375 .281 .500 - 1.312 1/4-28 - .750 .469 .375 16 2,539 .06
PM 5 5/16x5/16-24 .3125 .875 .437 .344 .625 1.875 - 5/16-24 1.250 - - - 14 2,784 .07
PF 5 5/16x5/16-24 .3125 .875 .437 .344 .625 - 1.375 5/16-24 - .750 .500 .437 14 3,133 .09
PM 6 3/8X3/8-24 .3750 1.000 .500 .344 .719 1.938 - 3/8-24 1.250 - - - 12 3,915 .11
PF 6 3/8X3/8-24 .3750 1.000 .500 .406 .719 - 1.625 3/8-24 - .937 .687 .562 12 3,915 .15
PM 7 7/16X7/16-20 .4375 1.125 .562 .406 .812 2.125 - 7/16-20 1.375 - - - 14 4,218 .16
PF 7 7/16X7/16-20 .4375 1.125 .562 .437 .812 - 1.812 7/16-20 - 1.062 .750 .625 14 4,218 .20
PM 8 1/2X1/2-20 .5000 1.312 .625 .437 .937 2.438 - 1/2-20 1.500 - - - 12 6,660 .24
PF 8 1/2X1/2-20 .5000 1.312 .625 .500 .937 - 2.125 1/2-20 - 1.187 .875 .750 12 6,660 .33
PM 10 5/8X5/8-18 .6250 1.500 .750 .500 1.125 2.625 - 5/8-18 1.625 - - - 16 7,364 .37
PF 10 5/8X5/8-18 .6250 1.500 .750 .562 1.125 - 2.500 5/8-18 - 1.500 1.000 .875 16 7,364 .48
PM 12 3/4X3/4-16 .7500 1.750 .875 .562 1.312 2.875 - 3/4-16 1.750 - - - 14 11,518 .60
PF 12 3/4X3/4-16 .7500 1.750 .875 .687 1.312 - 2.875 3/4-16 - 1.750 1.125 1.000 14 11,518 .72
PM 14 7/8X7/18-14 .8750 2.000 .875 .687 1.375 3.375 - 7/8-14 2.000 - - - 7 18,476 .92
PF 14 7/8X7/18-14 .8750 2.000 .875 .765 1.375 - 3.375 7/8-14 - 1.875 1.300 1.125 7 18,476 1.03
PM 16-1 1/1-14 1.000 2.750 1.375 1.000 1.875 4.125 - 1-14 2.125 - - - 17 43,541 2.13
PF 16-1 1/1-14 1.000 2.750 1.375 1.000 1.875 - 4.125 1-14 - 2.125 1.625 1.500 17 43,541 2.41

HEAVY DUTY SHANK

RES PART NO.BORE X THD. SIZE REF.B DIA. +.0015 -.0005D DIA. +.010 -.010W WIDTH + .000 - .005T WIDTH + .005 - .005BALL DIA.
REF.		AM LGTH. -.015 +.015Af LGTH. -.015 +.015N THD. UNF. 3A-2BCM LGTH. +.062 -.031CF LGTH. +0.62 -.031E DIA. -.010 +.010F WRENCH FLAT .010a MIS. ANG. REF.ULT. STATIC RADIAL LOAD(LBS.)APPROX. WEIGHT
(LBS.)
PM 3-4 1/4X5/16-24 .2500 .875 .375 .281 .500 1.875 - 5/16-24 1.250 - - - 13 3,467 .07
PM 4-5 5/16X3/8-24 .3125 1.000 .437 .344 .625 1.938 - 3/8-24 1.250 - - - 12 5,323 .11
PM 5-6 3/8X7/16-20 .3750 1.125 .500 .406 .719 2.125 - 7/17-20 1.375 - - - 10 7,180 .16
PM 6-7 7/16X1/2-20 .4375 1.312 .562 .437 .812 2.438 - 1/2-20 1.500 - - - 12 9,620 .25
PM 7-8 1/2X5/8-18 .5000 1.500 .625 .500 .937 2.625 - 5/8-18 1.625 - - - 10 12,807 .37
PM 8-10 5/8X3/4-16 .6250 1.750 .750 .562 1.125 2.785 - 3/4-16 1.750 - - - 13 16,565 .57
PM 10-12 3/4X7/8-14 .7500 2.000 .875 .687 1.312 3.375 - 7/8-14 1.875 - - - 12 22,843 .92
PM 12-14 1X1 1/4-12 1.000 2.750 1.375 1.000 1.875 5.125 - 1 1/4-12 1.125 - - - 17 43,541 2.13
