HIGH MISALIGNMENT SPACERS & CONE SPACERS

HIGH MISALIGNMENT

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.

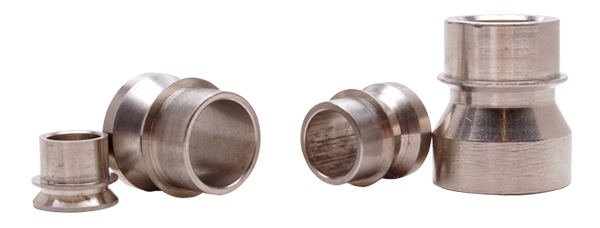

 high misalignment spacers
 		 high misalignment rod end

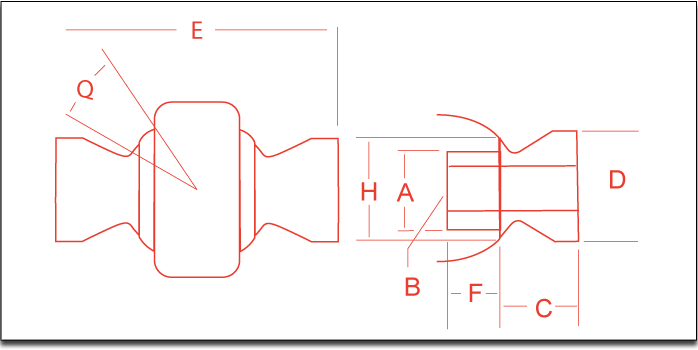

 HMS spacer
MATERIAL
STAINLESS STEEL



CAUTIONS

  1. Do not install any component listed here, on this site or in our catalog before you READ, UNDERSTAND AND ACCEPT THE WARNINGS.

NOTES

  1. Q - Approximate degrees
  2. E - Overall length can be modified to your specifications
  3. Other sizes are available

HIGH MISALIGNMENT SPACERS

RES
PART
NO.		A
+.000
-.0015

B
+.005
-.000

C
+.005
-.005

D
+.005
-.005		E
+.005
-.005		Q
Degrees

F
+.000
-.005

H
+.002
-.002
HMS 06-08 .500 3/8 .200 .616 1.030 29 .311 .697
HMS 08-10 .625 1/2 .462 .750 1.675 27 .373 .838
HMS 08-12 .750 1/2 .481 .890 1.835 30 .436 .970
HMS 10-12 .750 5/8 .481 .890 1.835 27 .436 .970
HMS 8-14 .875 1/2 .625 1.050 2.125 32 .436 1.055
HMS 10-14 .875 5/8 .812 1.050 2.500 23 .436 1.055
HMS 12-14 .875 3/4 .812 1.050 2.500 20 .436 1.055
HMS 10-16 1.000 5/8 .635 1.250 2.625 30 .686 1.250
HMS 12-16 1.000 3/4 .635 1.250 2.625 27 .686 1.250
HMS 12-16L 1.000 3/4 .835 1.250 3.040 27 .686 1.250
HMS 14-16 1.000 7/8 .635 1.250 2.635 24 .685 1.230
HMS 12-24 1.500 3/4 1.315 1.700 4.000 30 .680 1.817

CONE

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.
cone spacer
CONE SPACER
MATERIAL 2024 T3 ALUMINUM




CONE SPACERS

RES
PART
NO.		A

B

CDEQ
(degrees)
CS5 .412 5/16 .083 .625 .312 22
CS6 .500 3/8 .083 .750 .312 25
CS7 .562 7/16 .100 .750 .375 16
CS8 .592 1/2 .100 .875 .375 28
CS10 .750 5/8 .100 1.000 .375 28
CS12 .894 3/4 .125 1.375 .437 18
