CLEVIS & BALL JOINTS

CLEVIS

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.





STANDARD MATERIAL
C1045 STEEL
ZINC PLATED

CAUTIONS

  1. Do not install any component listed here, on this site or in our catalog before you READ, UNDERSTAND AND ACCEPT THE WARNINGS.

NOTES

  1. SS - Stainless Steel
  2. CH - Chrome

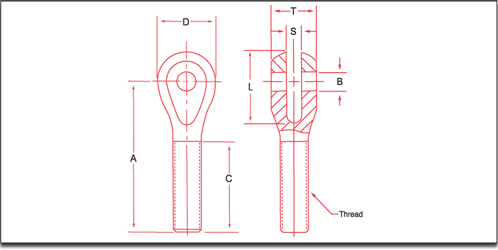

CLEVIS

RES
PART
NO.		BORE
X THD.
SIZE
REF.

B
DIA.
+.005
-.000

D
DIA.
+.010
-.010

T
WIDTH
+.005
-.005		A
LGTH.
+.015
-.015		C
LGTH.
+.062
-.031

S
SLOT
+.005
-.005

N
THREAD.
UNF-3A		L
SLOT
+.005
-.005
CV4-5 1/4x5/16 .2500 .875 .625 2.250 1.250 .188 5/16-24 1.05
CV5-5 5/16x5/16 .3125 .875 .625 2.250 1.250 .188 5/16-24 1.05
CV5-6 5/16x3/8 .3125 .875 .625 2.250 1.250 .188 3/8-24 1.10
CV5-8 5/16x1/2 .3125 1.000 .750 2.500 1.500 .250 1/2-20 1.15
CV6-8 3/8x1/2 .3750 1.000 .750 2.500 1.500 .250 1/2-20 1.15
CV6-10 3/8x5/8 .3750 1.125 .825 3.375 2.000 .375 5/8-18 1.50
CV8-10 1/2x5/8 .5000 1.125 .825 3.375 2.000 .375 5/8-18 1.50
CV6-10SS 3/8x5/8 .3750 1.125 .825 3.375 2.000 .375 5/8-18 1.50
CV7-10SS 7/16x5/8 .4375 1.125 .825 3.375 2.000 .375 5/8-18 1.50
CV8-10CH 1/2x5/8 .5000 1.125 .825 3.375 2.000 .375 5/8-18 1.50

QUICK RELEASE

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.
quick release



STUD BODY
C1020 STEEL C1045 STEEL
 PRECISION GROUND HEAT TREATED
ZINC & YELLOW ZINC & YELLOW
 DICROMATE PLATED  DICROMATE PLATEED

QUICK RELEASE

RES
PART
NO.		A
THREAD

B

CDEF

G

HIJKBALL
DIA.
QRBJ3 10-32 1.063 .906 .438 .438 .438 .125 .063 .313 .171 .438 .253
QRBJ4 1/4-28 1.094 .906 .500 .469 .563 .125 .063 .313 .171 .438 .253
QRBJ5 5/16-24 1.563 1.250 .563 .547 .688 .156 .094 .438 .232 .625 .341
QRBJ6 3/8-24 1.312 1.562 .750 .718 .875 .187 .093 .500 .272 .750 .414

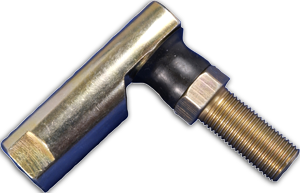

SEALED

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.




STUD SEAL BODY
C1020 STEEL BUNA N RUBBER C1045 STEEL
 PRECISION GROUND   HEAT TREATED
 ZINC & YELLOW   ZINC & YELLO
DICROMATE PLATED   DICROMATE PLATED

SEALED

RES PART NO.A THREAD

B

CDEFGF2 HEXKa MIS.ANG.REF.ULT. STATIC
RADIAL LOAD (LBS.)
BJF3RS 10-32 1.063 .875 .438 .438 .335 .876 .313 .375 17 850
BJF4RS 1/4-28 1.219 .969 .500 .469 .460 1.032 .375 .438 17 1,280
BJF5RS 5/16-24 1.406 1.125 .563 .531 .585 1.219 .438 .500 17 1,800
BJF6RS 3/8-24 1.688 1.375 .750 .688 .775 1.563 .500 .625 17 2,650
BJF8RS 1/2-20 2.375 1.938 1.000 .875 1.000 2.000 .625 .750 16 2,808
