AM, AF

Call Rod End Supply inside sales personnel at 1-800-284-2902 with your specific application needs.

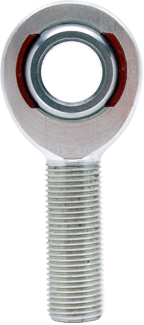

AM Rod End
AM
BALL RACE BODY
52100 BEARING STEEL INJECTION 7075-T6
PRECISION GROUND MOLDED ALUMINUM
HEAT TREATED NYLAFIBER CLEAR ANODIZED
HARD CHROME PLATED MATRIX

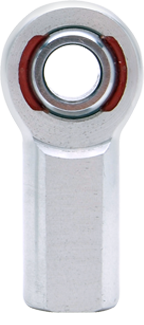

AF

CAUTIONS

  1. DO NOT LUBRICATE: The rod ends listed below are self-lubricating. Additional lubricants may attract dirt and/or interfere with the self-lubricating properties of the component and may cause accelerated wear.
  2. Do not install any component listed here, on this site or in our catalog before you READ, UNDERSTAND AND ACCEPT THE WARNINGS.
  3. DO NOT OPERATE VEHICLE WITH WORN OR CONTAMINATED ROD ENDS.

NOTES

  1. FOR LEFT HAND THREADS ADD "L" TO PREFIX. EXAMPLE:AML12 *Right Hand Only
  2. FOR STUDS ADD "Y" TO SUFFIX. EXAMPLE: AM12Y

AM, AF ROD ENDS: ALUMINUM - SELF-LUBRICATING & SELF SEALING NYLAFIBER MATRIX RACE

RES PART NO.BORE X THD. SIZE REF.B DIA. +.0015 -.0005D DIA. +.010 -.010W WIDTH + .000  - .005T WIDTH + .005  - .005BALL DIA.
REF.		AM LGTH. -.015 +.015Af LGTH. -.015 +.015N THD. UNF. 3A-2BCM LGTH. +.062 -.031CF LGTH. +0.62 -.031E DIA. -.010 +.010F WRENCH FLAT +.010 -.010a MIS. ANG. REF.ULT. STATIC RADIAL LOAD(LBS.)APPROX. WEIGHT
(LBS.)
AM 3 3/16x10-32 .1900 .625 .312 .250 .437 1.250 - 10-32 .750 - .406 - 13 1350 .02
AF 3 3/16x10-32 .1900 .625 .312 .250 .437 - 1.062 10-32 - .562 .406 .312 13 1750 .03
AM4 1/4x1/4-28 .2500 .750 .375 .281 .500 1.562 - 1/4-28 1.000 - .469 - 16 2500 .03
AF 4 1/4x1/4-28 .2500 .750 .375 .281 .500 - 1.312 1/4-28 - .750 .469 .375 16 2900 .04
AM 5 5/16x5/16-24 .3125 .875 .437 .344 .625 1.875 - 5/16-24 1.250 - .500 - 14 3200 .05
AF 5 5/16x5/16-24 .3125 .875 .437 .344 .625 - 1.375 5/16-24 - .750 .500 .437 14 3600 .06
AM 6 3/8x3/8-24 .3750 1.000 .500 .406 .719 1.938 - 3/8-24 1.125 - .687 - 12 4500 .05
AF 6  3/8x3/8-24 .3750 1.000 .500 .406 .719 - 1.625 3/8-24 - .937 .687 .562 12 4500 .07
AM 7 7/16x7/16-20 .4375 1.125 .562 .437 .812 2.125 - 7/16-20 1.375 - .750 - 14 4800 .09
AF 7 7/16x7/16-20 .4375 1.125 .562 .437 .812 - 1.812 7/16-20 - 1.062 .750 .625 14 10285 .10
AM 8 1/2x1/2-20 .5000 1.312 .625 .500 .937 2.438 - 1/2-20 1.500 - .875 - 12 7700 .12
AF 8 1/2x1/2-20 .5000 1.312 .625 .500 .937 - 2.125 1/2-20 - 1.187 .875 .750 12 7700 .14
AM 10 5/8x5/8-18 .6250 1.500 .750 .562 1.125 2.625 - 5/8-18 1.625 - 1.000 - 16 8600 .18
AM 12 3/4x3/4-16 .7500 1.750 .875 .687 1.312 2.785 - 3/4-16 1.750 - 1.125 - 14 13400 .29

HEAVY DUTY SHANK

RES PART NO.BORE X THD. SIZE REF.B DIA. +.0015 -.0005D DIA. +.010 -.010W WIDTH + .000   - .005T WIDTH + .005   - .005BALL DIA.
REF.		AM LGTH. -.015 +.015Af LGTH. -.015 +.015N THD. UNF. 3A-2BCM LGTH. +.062 -.031CF LGTH. +0.62 -.031E DIA. -.010 +.010F WRENCH FLAT +.010 -.010a MIS. ANG. REF.ULT. STATIC RADIAL LOAD(LBS.)APPROX. WEIGHT
(LBS.)
AM 5-6 5/16x3/8-24 .3125 1.000 .437 .344 .625 1.938 - 3/8-24 1.250 - - - 12 5800 .05
AM 6-7 3/8x7/16-20 .3750 1.125 .500 .406 .719 2.125 - 7/16-20 1/375 - - - 10 7800 .09
AM 7-8 7/16x1/2-20 .4375 1.312 .562 .437 .812 2.438 - 1/2-20 1.500 - - - 12 11100 .13
AM 8-10 1/2x5/8-18 .5000 1.500 .625 .500 .937 2.625 - 5/8-18 1.625 - - - 10 15000 .18
AM 10-12 5/8x3/4-16 .6250 1.750 .750 .562 1.125 2.875 - 3/4-16 1.750 - - - 13 19300 .30
*AM 6-8 3/8x1/2-20 .3750 1.312 .625 .500 .937 2.438 - 1/2-20 1.500 - - - 12 11100 .13
*AM 6-10 3/8x5/8-18 .3750 1.500 .625 .500 .937 2.625 - 5/8-18 1.625 - - - 13 15000 .18
